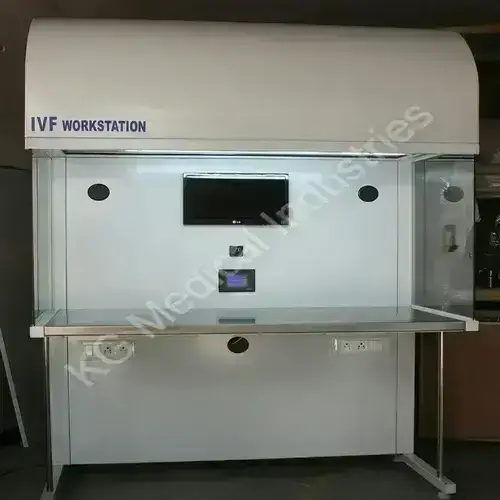

IVF Workstation 4ftx2ft: Creating an Ideal Environment for Assisted Reproduction
When it comes to assisted reproduction techniques, creating the right and clean environment is crucial for IVF case success. IVF Workstation 4ftx2ft play a pivotal role in providing the optimal conditions required for in vitro fertilization (IVF) procedures. Here, we will explore the significance of IVF workstations, with a particular focus on the 4ftx2ft model. This product completely works on the working principle of Laminar Air Flow, hence it is also called IVF Laminar Air Flow 4ftx2ft. We offer lowest IVF Workstation Price in India since last more than 15 years.
Understanding IVF Workstations
IVF workstations and IVF Laminar Air Flow 4ftx2ft are specially designed enclosures that provide a controlled environment for handling gametes (sperm and eggs) and embryos during the IVF process. These workstations create a sterile and dust-free environment, ensuring the highest level of cleanliness to prevent contamination and maximize the chances of successful fertilization.
Our IVF workstation is made to provide clean class 100 air through the use of inbuilt filtration system. Our Laminar Air Flow is completely compatible for all kinds of infertility labs (IVF Lab). It works with low noise, and less vibrations. The Laminar Air Flow unit has inbuilt Vertical air flow systems as required by any ideal IVF labs.
Importance of IVF Workstation Size
The size of an IVF workstation plays a crucial role in optimizing workflow and maintaining sterility. The 4ftx2ft dimension is a popular choice among fertility clinics and laboratories due to its optimal balance of space and functionality. This size allows for efficient handling of instruments and equipment, while still providing ample working space for embryologists.
Construction:-
IVF Workstation 4ftx2ft / IVF Laminar Air Flow 4ftx2ft body and filter assembly is manufactured of mild steel. Workstation Main Table area are made entirely of SS grade stainless steel. It also has inbuilt heating system which operated electronic PID temperature controller systems. This model of IVF workstation is made with two stage filtration system with Pre and Hepa filtration. It assured 99.97 % class 100 air system with 0.3 micron air quality. The Laminar Air Flow operated with heavy power blower system.
Product Technical Specification | |
| Make for | KG Medical Industries |
| Model | GI with powder Coated Vertical |
| Work Table | SS304G with Mirror Finish Surface |
| Cleanliness | Class 100 or above |
| Temperature Controller | PID Digital |
| Monitoring System | 14/16/18″ LCD Monitor (Optional – Available on extra Payment ) |
| Brand | KGMI |
| Particle Retention | 0.3 Micron & above |
| Velocity | 90 Feet/Minute ± 20% |
| Noise Level | 56 decibel ± 5%- Centrifugal type |
| Illumination | 40 Watts, 4 Ft. Fluorescent Tubes with Diffusers |
| Power Sockets | 2-4 Nos. of 5 Amps Sockets for Future application |
| Temperature Accuracy | ± 0.5°C (Room Temperature needs to maintain 9°C less than set pt.) |
| Temperature Uniformity | 95% ± 5% |
| Power Supply | 220 V Single Phase, 50 Hz. 1.2 KVA |
| HEPA- Filter | |
| Media | Ultra clean glass Fiber paper – Imported |
| Casing | Epoxy coated CRCA Frame |
| Separators | Mini Pleat no separators |
| Retention | 0.3 Microns and above |
| Efficiency | 99.97% |
| Pre- Filter | |
| Media | Synthetic, Non-woven polyester fibers |
| Casing | Enamel Painted CRCA Frame |
| Retention | 10 – 15 Microns |
| Efficiency | 99.97% |
| Blower Assembly | 1 Nos. of Blowers |
| Uses of IVF Workstation 4ftx2ft / IVF Laminar Air Flow 4ftx2ft | |
| Uses |
|
| Product Warranty | One Years or less |
| Test Certificate | Available |
| Replacement | Not Applicable |
| Applicable GST | 18% |
| Our similar Products | |
Key Features of IVF Workstation 4ftx2ft:
- Laminar Airflow System: The IVF workstation 4ftx2ft is equipped with a laminar airflow system, which ensures a continuous supply of filtered air. This airflow helps to remove airborne contaminants, such as dust particles and microorganisms, providing a clean and sterile environment for handling delicate gametes and embryos.
- HEPA Filtration: High-Efficiency Particulate Air (HEPA) filters are integrated into the workstation to trap particles as small as 0.3 microns with a filtration efficiency of 99.97%. These filters help maintain a sterile environment by removing bacteria, viruses, and other contaminants from the incoming air.
- UV-C Sterilization: The IVF workstation 4ftx2ft often incorporates UV-C sterilization technology. UV-C light effectively kills or inactivates microorganisms, providing an additional layer of sterilization within the workstation. UV system is optional, we give it to the customer inside the system as per the instructions of the government, otherwise we don’t give it.
- Temperature and Humidity Control: Maintaining the optimal temperature and humidity levels is crucial for the development and survival of embryos. IVF workstations offer precise control over these parameters, ensuring the ideal conditions for successful fertilization and embryo culture.
Product Warranty / Returnable
- Standard Warranty: One Year.
- Returnable: Non-Returnable.
